Recovery Beds

Inquiry form

Product Request

Category:

Description

Options Available :
Semi  Motorized  Recovery  Beds :
Electrical and manual operations:

  • Only backrest electrically adjusted operations in Two Section Recovery Bed
  • Only backrest electrically adjusted in Four Section Recovery Bed
  • Backrest and leg up electrically adjusted in Four Section Recovery Bed with user friendly handset
  • Trendelenburg and reverse trendelenburg and any non-motorized adjustments through separate screw mechanisms provided with handles
  • Electrical adjustments available either on actuator with manual override system adjustments through OR actuator with battery back-up facility

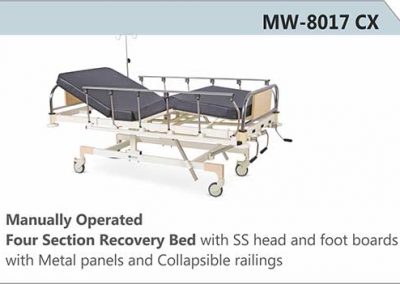

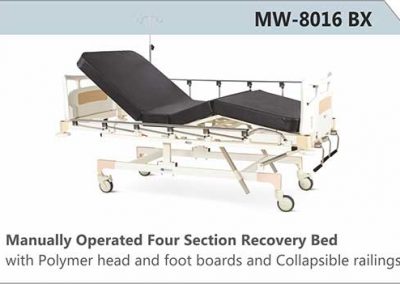

Manually  Operated  Recovery  Beds:
Manual operation:

  • Backrest operations, leg up and trendelenburg and reverse trendelenburg adjustments on
    separate screw mechanisms provided with handles

Common  Features :

  • Four / Two sections uniformly perforated mild steel CRCA sheet top
  • Top frame and base frame made from mild steel tubes
  • Telescopic stainless steel IV pole with four locations
  • Four heavy duty castors 125 mm dia, two with brake
  • Rubber buffers at four corners
  • Pretreated and powder coated finish
  • Supplied in SKD condition

Head and Foot boards :

  • Polymer head and foot boards / SS head and foot boards with Metal panels
  • Four  Section  Recovery  Beds :

Bed dimensions :
Option 1:

  • Bed frame approx. dimension  :   2080 mm L x 915 mm W x 600 mm H [82″L x 36″W]
  • Overall approx. dimension (buffer-to-buffer)  :  2180 mm L x 1015 mm W

Option 2:

  • Bed frame approx. dimension  :  1980 mm L x 840 mm W x 600 mm H [78″L x 33″W]
  • Overall approx. dimension (buffer-to-buffer)  :  2080 mm L x 940 mm W

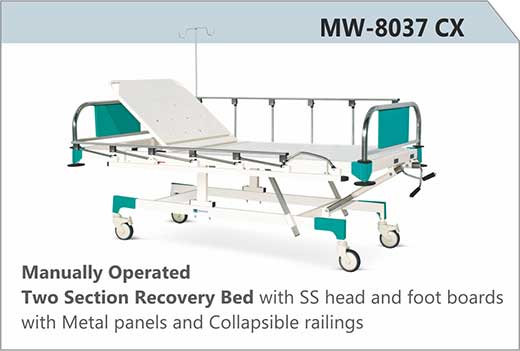

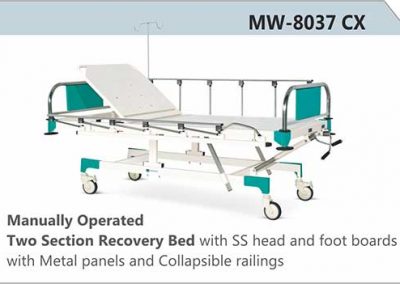

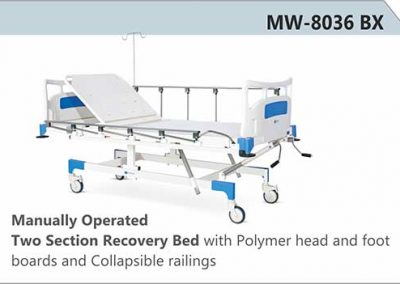

Two  Section  Recovery  Bed :
Bed dimensions :
Option 1:

  • Bed frame approx. dimension  :   1980 mm L x 915 mm W x 600 mm H [78″L x 36″ W]
  • Overall approx. dimension (buffer-to-buffer)  :  2080 mm L x 1015 mm W

Option 2:

  • Bed frame approx. dimension  :  1905 mm L x 840 mm W x 600 H [75″ L x 33″ W]
  • Overall approx. dimension (buffer-to-buffer)  :  2005 mm L x 940 mm W
  • Bed frame dimension varies with polymer railings (Applies for all types of beds)

Optional  Accessories:

MW-1002
Polymer railings with degree indicator (set of four)

MW-1004
Polymer railings without degree indicator (set of four)

MW-1007
Collapsible railings with SS tubes and MS brackets (pair)

MW-1021
Four Section 100 mm thick PU foam mattress cover with rexine

MW-1022
Two section 100 mm thick PU foam mattress cover with rexine

MW-1026
Pillow cover with rexine

MW-1066
Heavy duty Telescopic Infusion Pumps pole – SS

MW-1077
Lifting Pole -SS

MW-1082
Chart Holder
